UV PRINTER NEO SUN(Hybrid)

페이지 정보

본문

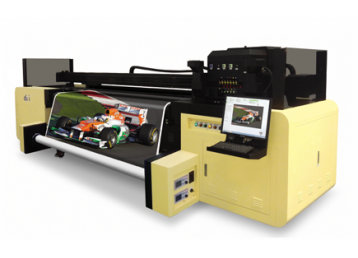

UV PRINTER NEO SUN(Hybrid)

EXTRME High-end ‘X’series Neo-sun hybrid

HB2500 Series, HB3200 Series

제품정보

  • -Speed: 240sqm / hr (Express mode / NS2 HB3204D-W2X) Provides high productivity
  • -Quality: up to 2400 dpi, 4 levels (0, 3, 6, 13) grayscale, DMPT mode
  • -Hybrid: DTC system for 3.2m roll media provides stable media transfer, rigid media also provides safety of quality with conveyor belt system
상세 제품정보











5bb5b1a9a1f225c4f32159cad776a1e4_1582251











Field of application
1. As it is possible to print photos requiring high resolution, it can be used for promotional souvenirs or digital galleries.
 2. It is widely used in construction and interior fields due to unlimited material application and eco-friendliness.
3. The field of application is infinite, from indoor advertising to outdoor advertising. Advantages
1. Optimized for entry segment of Wide Format UV digital printer.
2. As it is manufactured by TCP system, it can be used immediately by connecting electricity and air without any additional work when installing equipment.
3. High precision printing is possible by using S / W that precisely controls dot shape and position during ink spraying (720 X 1440 dpi).
4. It is easy to manage by applying white ink automatic circulation system.
5. The height of media and head base can be set automatically by adopting LIFT.
6. Automatic suction cleaning device for easy head nozzle management.
7. Combo type printer that can print both roll-to-roll and rigid materials (built-in system, not optional)
8. EDGE TO EDGE PRINTING is available as a replacement belt type.
9. The system automatically adjusts the power of UV LAMP in 8 stages, providing an optimized curing environment especially for heat sensitive materials
. 10. Parts lists and manuals are fully supported. ---> All parts are code system, so it is easy to supply parts during A / S and maintenance.
11. WASATCH RIP has a built-in ICC PROFILE function that can easily and completely implement various editing functions and desired colors.
12. A set of front and rear extension tables is included in the starter kit to print on large sized materials.
13. Since RIP AND PRINT method does not process data separately in RIP, image transmission speed for printing is fast.
14. Media can be printed up to 50mm thick.
15. Built-in anti-collision sensor system for head nozzle protection.
16. There is an automatic ionizer system to eliminate trouble caused by static electricity when printing.
Configuration
Rip S / W, User Manaual, Inks / Solution, Tools, etc. quality * Best quality stability that has been supplied to the world market for about 10 years through in-house technology development and manufacturing
* Quality improvement through continuous upgrade and new product development
* Fast and accurate after-service and manufacturing / supply through a complete manufacturing / quality assurance system
Productivity * High productivity with up to 33sqm output per hour
* Implement the operation and operation system of the equipment to enable the user to continuously and conveniently work as quickly as possible.
* By applying automatic ink refill system, it discharges a certain amount of ink and maintains high quality output stably based on accurate dot shape / position control S / W Precautions for Use  Be sure to read the user's manual and periodic checklist before using the equipment.
 For stability of output, please keep cleanliness, horizontality and constant temperature and humidity in printing room after installation.
"Copya's UV printers are optimized based on a combination of printheads, UV lamps, and UV inks. You must use the heads, lamps, and genuine ink within the expiration date. And the quality of the printouts. "
 You can use the equipment optimally for a long time when you observe the maintenance / maintenance by cycle.
