UV PRINTER NEO SUN(Flatbed)
페이지 정보
본문

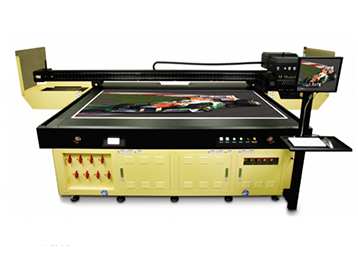

UV PRINTER NEO SUN(Flatbed)
EXTRME High-end ‘X’series NEO SUN FB2513-04DWX
FB2513-04DWX
제품정보
- -Speed: 100sqm / hr (Express Model) Provides high productivity
- -Quality: up to 2400 dpi, 4 levels (0, 3, 6, 13) grayscale, DMPT mode
- -Accuracy: Perfect image quality through dual servo motor control
상세 제품정보
Field of application
1.244mm x 1,220mm
2. Eco-friendly textile use, construction, interior industry and eco-friendly use (wood, deco tile, glass, gypsum board)
3. Printed on materials that adhere to everyday life such as glass
Advantages
1. Vacuum pressure control system that automatically adjusts the pressure in the vacuum area according to the material size to obtain the optimum print quality.
2. High-resolution precision printing is possible by using S / W that precisely controls the shape and position of the dot during ink spraying (600 X 2400 dpi)
3. Dual servo automatic feeding control system to maintain accurate and stable printing quality by automatically controlling two servo motors at the same time
4. The height of the media and the head base can be set automatically by adopting the LIFT
5. Ionizer system that automatically improves the output quality by eliminating static electricity that may occur during printing
6. Automatic head cleaning system to maintain the best nozzle condition of the head
7. Lamp intensity adjustment system to prevent deformation of media
8. Drawer type refill system for user convenience 9. Air blow system for easy heavy material setting 10. Head shock protection sensor for head protection
11. Origin system with origin setting
12. The media can be printed up to 50mm thick.
13. Stable head management without clogging nozzles by applying White Circulation devic Configuration
Wasatch RIP S / W, User Manaual, Inks / Solution, Tools, etc. quality
Wasatch RIP S / W, User Manaual, Inks / Solution, Tools, etc. productivity
1. High productivity with up to 109sqm output per hour
2. Implement structure and operation system that enable continuous operation by user conveniently and quickly.
3. User-friendly function that allows the user to set the material quickly and easily Notice for use
1. Be sure to read the user manual and checklists carefully before using the equipment.
2. Always maintain the cleanliness, horizontality and constant temperature and humidity in the printing room after installing the equipment for stability of output.
3. Copya's UV printers are optimized based on a combination of the printhead, UV lamp and UV ink. You must ensure that the life of the equipment and the quality of the printouts are assured only by the use of heads, lamps, and genuine inks which are supplied by the COPIA.
4. You can use the equipment for a long time in an optimal state when you use it after keeping the maintenance / repair by cycle.
7. Lamp intensity adjustment system to prevent deformation of media
8. Drawer type refill system for user convenience 9. Air blow system for easy heavy material setting 10. Head shock protection sensor for head protection
11. Origin system with origin setting
12. The media can be printed up to 50mm thick.
13. Stable head management without clogging nozzles by applying White Circulation devic Configuration
Wasatch RIP S / W, User Manaual, Inks / Solution, Tools, etc. quality
Wasatch RIP S / W, User Manaual, Inks / Solution, Tools, etc. productivity
1. High productivity with up to 109sqm output per hour
2. Implement structure and operation system that enable continuous operation by user conveniently and quickly.
3. User-friendly function that allows the user to set the material quickly and easily Notice for use
1. Be sure to read the user manual and checklists carefully before using the equipment.
2. Always maintain the cleanliness, horizontality and constant temperature and humidity in the printing room after installing the equipment for stability of output.
3. Copya's UV printers are optimized based on a combination of the printhead, UV lamp and UV ink. You must ensure that the life of the equipment and the quality of the printouts are assured only by the use of heads, lamps, and genuine inks which are supplied by the COPIA.
4. You can use the equipment for a long time in an optimal state when you use it after keeping the maintenance / repair by cycle.
